J-1018 à¤à¥à¤®à¥à¤¬à¥ à¤ªà¥à¤²à¤¾à¤¨à¤° à¤®à¤¶à¥à¤¨ Specification

प्रॉडक्ट टाइप
J-1018 कॉम्बी प्लानर मशीन

टेक्नोलॉजी
सीएनसी

पावर सोर्स
बिजली

ऑपरेटिंग टाइप
ऑटोमेटिक

सतह का उपचार
कोट किया हुआ

उपयोग/अनुप्रयोग
औद्योगिक

J-1018 à¤à¥à¤®à¥à¤¬à¥ à¤ªà¥à¤²à¤¾à¤¨à¤° à¤®à¤¶à¥à¤¨ Trade Information

Minimum Order Quantity
1 Unit

डिलीवरी का समय
7 दिन

मुख्य घरेलू बाज़ार
ऑल इंडिया

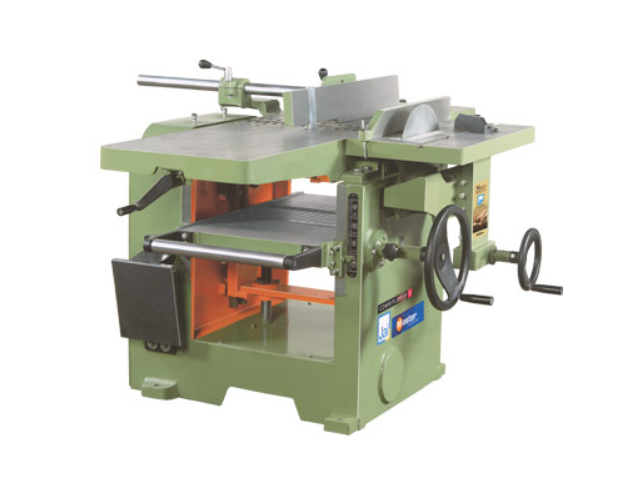

J-1018 Combi Planer Machine that introduced by us is for the professionals who value precision workmanship and multi-functionality. This type of machine is designed with exceptional folding-top facility that guarantees high visibility and flexibility white thicknessing. For silent operation, it is equipped with noise dampening system. Also, it has anti kick-back system for avoiding backsliding. Over and above, J-1018 Combi Planer Machine is available in different models like J-1013, J-1013 L, J-1018, and J-1018 LL at the most reasonable prices.

Specification

Approx. weight of machine-kg	600 kg
Circular saw table size	610 * 305 / 24" * 12"
Cutter block diameter	95 / 3.75"
Cutter block speed (RPM)	4000
Feeding speed (feet per min.)	21
Length of surface table	1550 / 61"
Length of thickness table	660 / 26"
Max circular saw diameter	300 / 12"
Max Planing width	455 / 18"
Min. length of workpiece for thickness	254 / 10"
Power Required - HP / RPM	5 / 1440
Rebating Capacity	9 / 3/8"
Standard cutter block - code no.	3B-W
Surfacing Capacity	455 / 18"
Thickness Capacity	177 / 7"
Up/Down movement of cir.saw table	75 / 3"
Country of Origin	Made in India
Model Name/Number	COMBIMAXJ-1018
Material	Cast iron
Brand	JAI
Power	5/1440
Automation Grade	Semi-automatic
Usage/Application	WOOD WORKING
